Product
Products
Home /OPzV/OPzS Tubular Battery /

OPzV Tubular Gel Battery

/Tubular Deep Cycle Gel OPzV Battery

Tubular Deep Cycle Gel OPzV Battery

Tubular Plate with Pure Gel Supper long life Battery, Capacity: 2V100Ah~2V3000Ah. 12V100Ah~12V200Ah.

OPzV batteries offer the highest cycle life among all other sealed lead acid batteries, with significant savings on the cost per cycle.

Produce tubular plate by ourself , For urgent project we can support 20-25days fast delivery time.

  • Item NO.:

    OPzV Series
  • Product Origin:

    China
  • Color:

    All Grey
  • Goods stock:

    500
  • Min order:

    24 pcs
  • Product weight:

    10kgs-225kgs
  • Lead Time:

    30-40 days, Fast Delivery 25days
  • Plate:

    Tubular Plate
  • Nominal Voltage:

    2V 12V
  • Discharge Rate:

    0.2-1.0C
  • Electrolyte:

    German GEL
  • Welcome:

    OEM Brand with Free
  • Usage:

    off Grid Solar/Wind Power System
  • Certificates:

    CE/IEC/ISO
  • Warranty:

    3-5 Years
  • Trade Terms:

    EXW, FOB, CIF
Features

CSBattery OPzV Series Tubular Deep Cycle GEL Battery

OPzV Tubular Deep Cycle Solar GEL Battery, own 20-25years long life, your best partner for solar market and hot area.

OPzV batteries offer the highest cycle life among all other lead-acid batteries, with significant savings on the cost per cycle. They are maintenance-free and have robust construction, providing the highest level of reliability and performance. OPzV batteries have superior deep discharge durability and excellent recharging properties. They are the best choice of batteries for industrial projects, even in remote installations with minimal supervision. In some regions of the world, where electricity is unstable, high capacity backup power is required. Whether you’re generating backup power from solar panels or wind turbines, frequent power outages require high performing batteries with excellent deep cycling capabilities.  CSBattery tubular gel OPzV batteries offer high capacity reserve power and true deep cycling performance. With a design life of 20 years and a maintenance-free operation, OPzV batteries are perfect for regions with an unstable supply of electricity.  CSBattery OPzV batteries are also completely spill-proof, which makes them safe to install anywhere, even in remote environments with minimal supervision. OPzV batteries are also available in a front terminal design upon request.



Advanced Features OF OPzV Tubular Deep Cycle GEL Batteries:
Ø Environmentally friendly                                                  Ø  Completely Maintenance-Free                  Ø Non-Spillable construction design.
Ø Wide Operating Temperature Range(-20°C~+60°C)    Ø  Longer Life(20years designed life)             Ø Explosion Proof
Ø Valve Regulated & High Discharge Rate Capability      Ø Low Self Discharge
Ø Independent of Position

Ø Ease of Shipment                                                                Ø  No need of balanced charge or boost      Ø  No Memory

OPzV cells have gelled electrolytes and tubular positive plates, which work together to deliver superior cycle count. The main advantage of these batteries and all other types of lead-acid is that OPzV technology utilizes a very high design life of 20 years. This is thanks to the unique battery construction, which is enhanced with a positive tubular plate and a higher lead density. Other lead-acid batteries are designed with flat plates, which deliver a good cycle count, but not nearly close to the cycle counts offered by tubular gel cells. This makes them ideal for applications requiring reliable batteries that deliver many years of maintenance-free and headache-free operations. Some of these battery applications include solar energy, telecom towers, reserve power, radio stations, power stations and commercial size UPS projects. These projects normally require a battery with a top terminal design, which is why we made that our standard. However,  CSBattery also offers the option of a front terminal design, which is more suitable for power cabinets. Regardless of which battery design you use, the technology and inner construction of the battery will be very similar. Below you will find a table with detailed information about how OPzV batteries are constructed.

Product Structure

Component Positive plate Negative plate Container &Cover Safety valve Terminal Separator Electrolyte Pillar seal
Features Turbular Plate  high Sn low Ca grid with Special paste Balanced Pb-Ca grid
for improved recombinati on efficiencv
Fire resistanc e ABS (UL94-V0octional) Flame
Si-Rubber and aging resistance
Female Copper lnsert Advanced PVC for high pressure cell desbm Silicon Gel Two layers epoxy resin seal

Assembling Over view

Quality Control & Certifications

Φ  ISO9001/14001/18001    Φ  IEC 60896-21/22                 Φ  IEC 61427            Φ  Eurobat guide, long life

Φ  BS6290 part 4                     Φ  GB/T 22473                          Φ  CE                  Φ  MH63727-UL



Product Packing

Free OEM/ODM,  CSBattery is competent at ODM and OEM

Orders according to customers realtime request.

Please come to us for your quality battery and solar partner in China today.

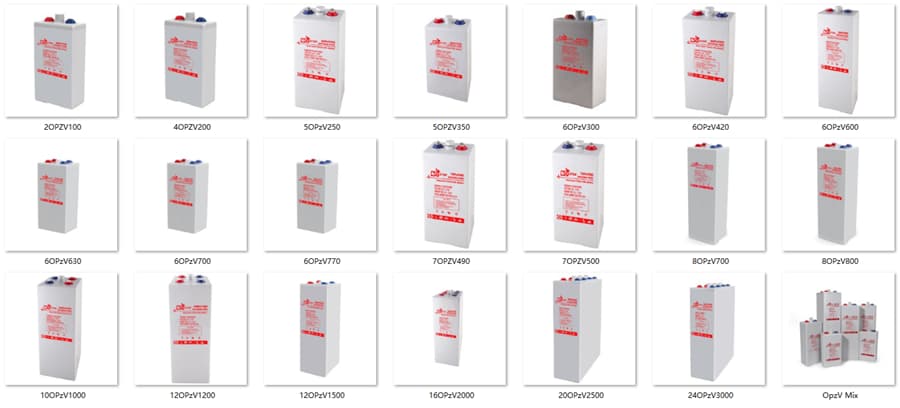

OPzV Series Fmaily

2V500Ah, 1000Ah, 1500Ah 2000Ah most popular models

2V200Ah, 2V300Ah, 2V350Ah, 2V400Ah, 2V500Ah, 2V600Ah, 2V800Ah, 2V1000Ah, 2V1000Ah, 2V1200Ah, 2V1500Ah, 2V2000Ah, 2V2500Ah, 2V3000Ah

12V100Ah, 12V150Ah, 12V200Ah

Inuiry us get Free Gift tooling




TECHNICAL DATA

Model Nominal Voltage (V) Capacity (Ah)  Dimension (mm) Net Weight Gross Weight Terminal
Length Width Height Total Height kgs kgs
4OPzV200 2 200 103 206 375 390 18 19 M8
5OPzV250 2 250 124 206 375 390 22.5 23.5 M8
6OPzV300 2 300 145 206 375 390 25 26 M8
5OPzV350 2 350 124 206 473 505 28 29 M8
6OPzV420 2 420 145 206 473 505 32 33 M8
7OPzV490 2 490 166 206 491 506 38 39 M8
6OPzV600 2 600 145 206 666 681 46 47 M8
8OPzV800 2 800 191 210 666 681 65 66 M8
10OPzV1000 2 1000 233 210 666 681 74 75 M8
12OPzV1200 2 1200 275 210 666 681 93 94 M8
12OPzV1500 2 1500 275 210 795 831 112 113 M8
16OPzV2000 2 2000 399 214 792 807 152 153 M8
24OPzV2500 2 2500 487 212 792 807 187 188 M8
24OPzV3000 2 3000 576 212 792 807 225 226 M8
12VOPzV100 12 100 407 177 225 225 36 37 M8
12VOPzV140 12 140 532 207 214 219 53.5 54.5 M8
12VOPzV160 12 160 532 207 214 219 57 58 M8
12VOPzV200 12 200 521 262 220 225 73 74 M8
Details change without notice.
SUCCESSFUL CASES

Project name: Energy Storage System

Country: Indonesia

Year: 2018



In 2018, CSBattery supplied Solar gel range VRLA batteries in Indonesia. Our team installed model no OPzV1000(2V 1000Ah) of Solar range Tubular Gel batteries as Building Main power for energy storage solution of 56KW off-grid solar system.
