SX Gel Solar Battery

/SX Deep Cycle Gel Solar Battery

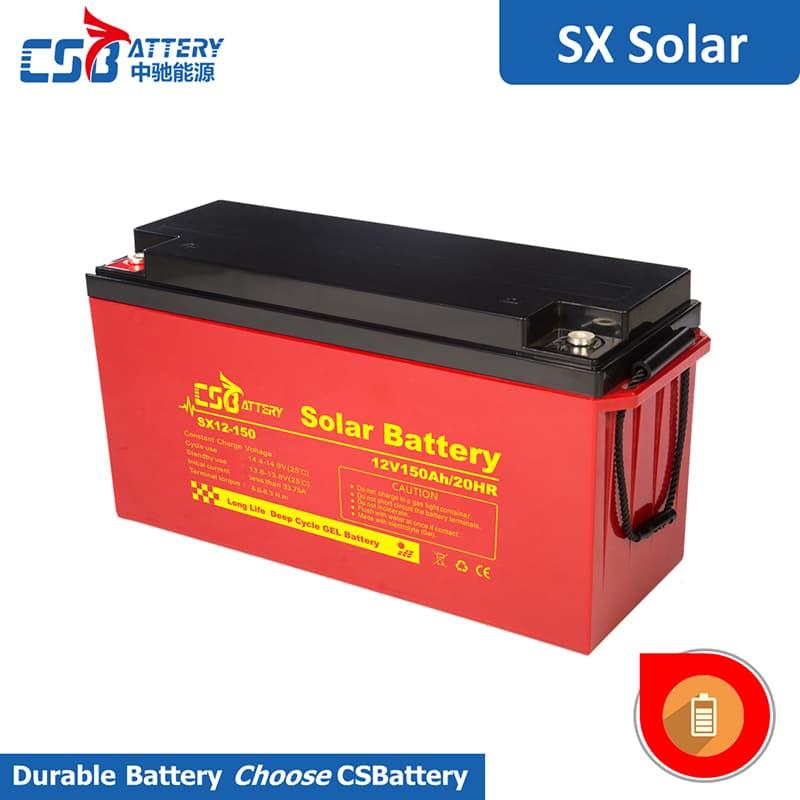

SX Deep Cycle Gel Solar Battery

Ø  Special design for Solar Power System

Ø  Thicken plate with Gel, Free maintenance

Ø  cyclic performance 1600cycles@50%DOD

Ø  Over 15 years design float using life

Ø  Excellent deep discharge recovery



  • Item NO.:

    SX Series Simple
  • Product Origin:

    China
  • Color:

    Red Body, Black Cover
  • Goods stock:

    500
  • Min order:

    12 PCS
  • Product weight:

    5-80 KGS
  • Lead Time:

    25-30 days, Fast Delivery 10days
Features



Model Nominal Voltage (V) Capacity (Ah)  Dimension (mm) Net Weight Gross Weight Terminal
Length Width Height Total Height kgs kgs
SX Deep Cycle GEL Solar Battery 12V
SX12-14 12 14 152 99 96 102 3.8 3.9 F1/F2
SX12-20 12 20 181 77 167 167 6 6.1 T1/L1
SX12-24 12 24 166 175 126 126 8.3 8.4 M6
SX12-26 12 26 165 126 174 179 8.4 8.5 M6
SX12-35 12 35 196 130 155 167 10.5 10.7 M6
SX12-40 12 40 198 166 174 174 14.2 14.4 M6
SX12-55 12 55 229 138 208 212 16 16.5 M6
SX12-70 12 70 350 167 178 178 23.3 23.8 M6
SX12-75 12 75 260 169 208 227 25 25.5 M6
SX12-85 12 85 260 169 208 227 26.1 26.6 M6
SX12-90 12 90 307 169 211 216 28.2 28.7 M6
SX12-100 12 100 307 169 211 216 30.2 30.7 M6
SX12-110 12 110 328 172 218 222 33.5 34 M8
SX12-120 12 120 407 173 210 233 39.2 39.7 M8
SX12-135 12 135 344 172 280 285 40.8 41.3 M8
SX12-150 12 150 484 171 241 241 45.5 46 M8
SX12-180 12 180 532 206 216 222 56 56.5 M8
SX12-200 12 200 532 206 216 222 58.6 59.1 M8
SX12-230 12 230 522 240 219 225 65 65.5 M8
SX12-250 12 250 520 269 203 207 71 71.5 M8
SX12-300 12 300 520 269 220 226 77 77.5 M8
SX Deep Cycle GEL Solar Battery 6V
SX6-200 6 200 306 168 220 222 30 30.1 M8
SX6-210 6 210 260 180 247 249 29.5 29.6 M8
SX6-220 6 220 306 168 220 222 31.5 31.6 M8
SX6-225 6 225 243 187 275 275 30.5 30.6 M8
SX6-250 6 250 260 180 265 272 34.5 34.6 M8
SX6-310 6 310 295 178 346 366 46 46.2 M8
SX6-330 6 330 295 178 354 360 46.6 46.8 M8
SX6-380 6 380 295 178 404 410 55.3 55.8 M8
SX6-420 6 420 295 178 404 410 56.8 57.3 M8
SX8-170 8 170 260 182 266 271 34.3 34.8 M8
SX8-200 8 170 260 182 295 300 38.3 38.8 M8
SX Deep Cycle GEL Solar Battery 2V
SX2-200  2 200 170 106 330 367 13.2 13.4 M8
SX2-300  2 300 171 151 330 365 18.7 18.9 M8
SX2-400  2 400 211 176 329 367 26.3 26.5 M8
SX2-500  2 500 241 172 330 364 31.2 31.4 M8
SX2-600  2 600 301 175 331 366 37.9 38.2 M8
SX2-800  2 800 410 176 330 365 51.8 52.1 M8
SX2-1000  2 1000 475 175 328 365 62.5 62.8 M8
SX2-1200  2 1200 472 172 338 355 69 69.3 M8
SX2-1500  2 1500 401 351 342 378 97 97.5 M8
SX2-2000  2 2000 491 351 343 383 130.5 131 M8
SX2-2500  2 2500 712 353 341 382 180.5 181 M8
SX2-3000  2 3000 712 353 341 382 190.5 191 M8
NOTE: All Above details shall be changed without prior notice, CSBattery Reserves the right to explain & update the lastest information.

>  Delivery time

  • Normal, 25-30 days for production with injection molding Lead-plate by ourself
  • As a factory we Can Support Urgent project with 10-15days.
  • OEM brand is free charge.
TECHNICAL DATA



CHARACTERISTICS

SX Series Solar Battery LONG LIFE DEEP CYCLE GEL BATTERY

Voltage: 12V, 6V, 2V

Capacity: 6V200Ah~6V420Ah, 2V200Ah~2V3000Ah, 12V14Ah~12V300Ah

Designed floating service life: 15~20years @25°C/77°F

> Summary for deep cycle gel solar battery (offgrid solar Battery)

Newest in 2016, CSBATTERY patented Solar Deep Cycle long life Gel battery, best choice for Solar project and maintain long service life over 15years.

  • Since 2003, CSBATTERY start the research and produce sealed free maintenance AGM and GEL storage batteries. Our batteries are always in the process of innovation according to market and environment:

          AGM battery→GEL battery → Solar Battery.

  • Since 2010, we have more and more clients from Africa and Middle east market, also according to global climate become warmer and warmer, especially in Africa and Middle east, more and more application need the long life storage battery working in high temperature, but normal battery recommended working temperature is 25℃, every 10℃increasing in operating temperature will cause the battery life reduce 50%, because high temperature speed up the corrosion of lead plates, reduce the conductivity and durability.
  • To solve this problem, after 2years research, CSBATTERY research team successfully made it. We produce new corrosion-resistant alloy and optimize grid structure to improve battery capacity of corrosion- resistant, extend its cycle life when work in high hemperature area.
  • We give it names “Solar Battery”, mixed the newest innovative technology of complex gel, Super-C, anti-high temperature material, corrosion-resistant alloy and so on. solar panel battery

> Features for deep cycle gel Solar battery (offgrid solar Battery)

Solar Battery series deep cycle gel battery is specially  sealed free maintenance deep cycle GEL battery with 15-20ys design life in float service, 30% more than standard Gel battery, and 50% more than Lead Acid AGM battery.

It meets with IEC, CE and ISO standards.With up-dated valve regulated technology and high purity raw GEL materials imported from Germany, the SX series battery maintains high consistency for better performance and reliable standby service life. It is designed specially for using under high and cold temperature sites. solar panel battery

> Advantages for deep cycle gel  Solar battery (offgrid solar Battery)

  • Three years warranty at 35°C-40°C average
  • Able to operate at -40°C to 60°C
  • Longer life and higher stability under high temp. environment (Perfect to be applied to renewable energy system or hybrid power system at tough condition.) solar panel battery
  • Adopt Super-C additives lead plates: Deep discharge recovery capability
  • Deep Cycle usage: 50% DOD, 1500-1600 Cycles work in high/cold temp. area.

> Construction for Deep cycle gel Solar battery (offgrid solar Battery)

  • deep cycle gel solar battery adopts super corrosion-resistant alloy and unique patented grid structure, so can improve the lead plates corrosion-resistant  performance in high temperature.
  • It adopts special positive negative lead plates ratio and unique nano gel electrolyte, so can improve battery overpotential of hydrogen evolution effectively and high reduce the water loss in high temperature environment.
  • Its paste formula is added anti-high temperature expanding agent, so can work continuously in high temperature environment.
  • Solar battery’s shell adopts anti-high temperature ABS material, so the battery inside will not be over heat lead to water loss because of high temperature environment, ensure the battery super long life and the shell will not swell even use in extreme high temperature area.
  • this series adopts patented gel electrolyte by nano-meter fumed silica, which advantage is high heat capacity and excellent heat release performance, can avoid the thermal runaway problem of normal battery, and discharge capacity can increase by over 30% in low temperature area. So this battery can work very well in severe environment between -40℃-65℃.
  • Its formula is added special super expanding agent which ensure battery discharge capacity is higher than other normal battery when work in low temperature, thus even this battery work in -40℃ area, it can work stable and continuously.

> Complied Standards Of SX series long life gel solar battery (offgrid solar Battery)

  • Ø IEC 61427-1  Ø IEC 60896-21/22
  • Ø ISO9001,       Ø ISO14001, Ø ISO18001
  • Ø Eurobat Guide, Ø BS6290 Part4
  • Ø BB/T 22473, Ø IATA  Ø IMDG

> Applications for long life gel solar battery (offgrid solar Battery)

  • Ø Solar power generation grid,
  • Ø Off Grid energy storage systems,
  • Ø Wind Power Systems

>  Delivery time (offgrid solar Battery)

  • Normal, 25-30 days for production with injection molding Lead-plate by ourself
  • As a factory we Can Support Urgent project with 10-15days.
  • OEM brand is free charge.

>  We are not only Facotry (what is the difference between us and common factory)

  • Help client design battery specification, Brochure, Catalog with client information;
  • Help client design Logo if need, Help customer make AD banner, even make website ;
  • Help client post AD on Facebook and Google;
  • Help customer calculate battery pack for solar/power project;
  • Share Chinese market trend,  help customer make yearly plan, and push customer place order in proper time;

If you hope to get a nice battiery supplier,  try to contact us. Let we can communicate more.

SUCCESSFUL CASES

Project name: Energy Storage System

Country: Saudi Arabia

Year: 2016



In 2016, CSBattery supplied Solar gel range VRLA batteries in Saudi Arabia. Our team installed model no SX12-200(12V 200Ah) of Solar range VRLA batteries as backup power for energy storage solution of 12KW offgrid solar system.
