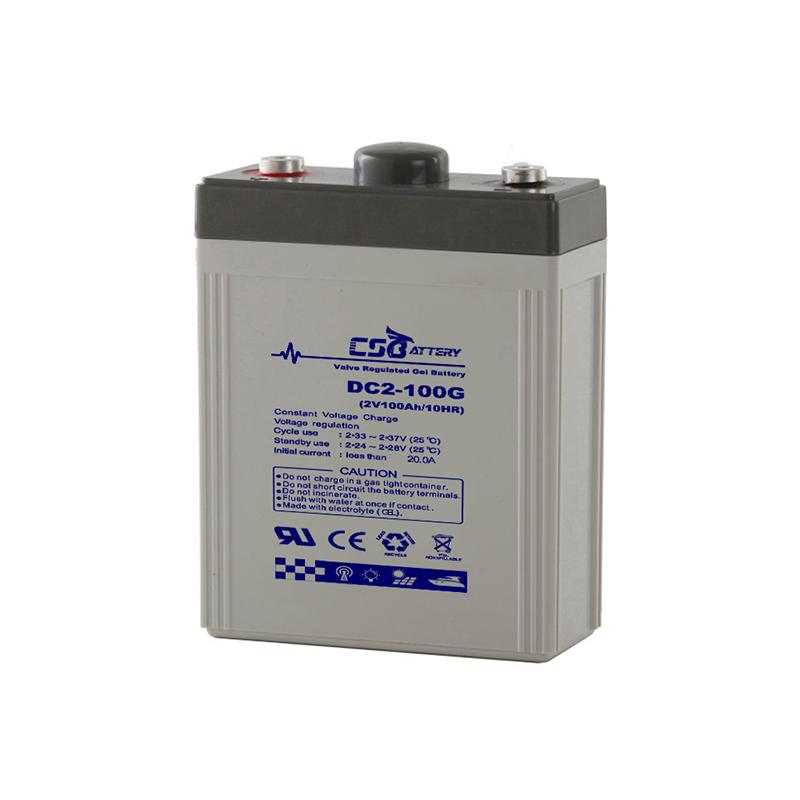

2V Deep Cycle Gel Batery

CSBattery DC2 series pure GEL Deep Cycle battery is with 12-15 years floating design life.

By adopting thicker grids, high purity 99.997% lead and German Gel electrolyte DC series offers excellent recovery performance after deep discharge under frequent cyclic discharge use, and can deliver 1500 cycles @ 50%DOD even work in hot or cold area. Suitable for Solar, CATV, marine, RV and deep discharge UPS, nd telecommunication , etc.

Our workshop Produce plate by ourself . For urgent project we support 10-15days fast delivery time.

  • Item NO.:

    DC2 GEL Series
  • Product Origin:

    China
  • Color:

    Whitel Grey Body, Block Cover
  • Goods stock:

    48
  • Min order:

    12 PCS
  • Product weight:

    13-190 KGS
  • Lead Time:

    25-30 days, Fast Delivery 25days
  • Plate:

    Thicken Flat Plate
  • Nominal Voltage:

    2V
  • Discharge Rate:

    0.1-0.5C
  • Electrolyte:

    German GEL
  • Welcome:

    OEM Brand, OEM Color...
  • Usage:

    Solar/Telecom/UPS
  • Certificates:

    CE/IEC/ISO
  • Warranty:

    3 Years
  • Trade Terms:

    EXW, FOB, CIF
Features

CHARACTERISTICS

CSBattery DC SERIES LONG LIFE DEEP CYCLE GEL BATTERY

  • Voltage: 2V
  • Capacity: 2V200Ah~2V3000Ah
  • Designed floating service life: 15~20 years @ 25 °C/77 °F.

> Summary for deep cycle 2V Gel battery

CSBattery deep cycle GEL battery is designed for frequent cyclic charge and discharge applications under extreme environments. By combining the newly developed Nano Silicone Gel electrolyte with high density paste, the Solar range offers high recharge efficiency at very low charge current. The acid stratification is highly reduced by adding Nano Silicone Gel.

> Features and Advantages for deep cycle 2V Gel battery

  • This Energy storage battery utilizes gel electrolyte technology. The uniformly distributed gel electrolyte is made by mixing sulfuric acid with silica fume.
  • The electrolyte can hold the battery plates securely in an immobile gel.
  • Radial grid design offers this power storage device excellent discharge performance.
  • Due to 4BS lead paste technology, our deep cycle gel battery provides long lasting service life.
  • Employing unique grid alloy, special gel formulation and distinct positive and negative lead paste ratio, the maintenance free battery boasts outstanding deep cycle service performance and over discharge recovery ability.
  • Completely manufactured from high purity raw materials, CSBattery deep cycle gel battery has extremely low self discharge.
  • Gas recombination technology ensures excellent seal reaction efficiency, thus delivering no pollution such as acid mist to the environment.
  • The gel VRLA battery boasts reliable sealing technology which enables security seal performance.

> Construction for deep cycle 2V Gel battery

  • Container/Cover: Made of UL94HB and UL 94-0ABS Plastic, fire resistance and water proof.
  • 99.997% pure new lead NEVER use recycle lead.
  • Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
  • High quality AGM separator: Absord acid electrolyte, the best retainer mat for VRLA batteries.
  • Positive plates: PbCa grids minimize corrosion and prolong life.
  • Terminal post: Copper or lead material with maximum conductivity, enhance the high current rapidly..
  • Vent Valve: Allows the release of the excess gas automatically for safety.
  • Three steps of Seal procedures: Ensure battery completely sealed with safety, never leakage and volatile acid, longer life.
  • Silicone Nano GEL electrolyte: Import from Germany Evonik famous brand silicone gel.

> Charging voltage and settings for stationary battery

  • Constant voltage charging is recommended
  • Recommended float charge voltage: 2.27V/cell @20~25°C
  • Float voltage temperature compensation: -3mV/°C/cel l
  • Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C
  • Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C
  • Max. charge current allowable : 0.25C

> Complied Standards

  • Ø IEC 60896-21/22   Ø IEC 61427  Ø ISO9001/14001/18001
  • Ø Eurobat guide, long life   Ø BS6290 part 4
  • Ø GB/T 22473  Ø CE   Ø IATA and IMDG

> Application of deep cycle 2V Gel solar battery

  • Ø Solar power generation grid,       Ø Off Grid energy storage systems, Ø Wind Power Systems,
  • Ø Hybrid energy storage systems,  Ø Home energy storage systems,   Ø Telecom Station
  • Ø Renewable energy storage,       Ø Smart power grids and micro-grids system
  • Ø Distributed energy storage system,   Ø UPS and Inverter systems,    Ø Emergency lighting system
  • Ø Generator and battery hybrid energy system
  • Ø Electric Powered Vehicles,  Ø Golf Cars and Buggies, Ø Tour bus, Ø Sweeper, Ø Floor cleaning machines,
  • Ø Wheel Chairs, Ø Power Tools, Ø Electric Powered Toys, Ø Control System, Ø Medical Equipments,
  • Ø Forklift, Ø Marine,  Ø RV, Ø Boat,  Ø Pumps,  and so on.

> DC2 Delivery time

  • Normal, 25-30 days for production with injection molding Lead-plate by ourself
  • As a factory we Can Support Urgent project with 10-15days.
  • OEM brand is free service.
TECHNICAL DATA

Model Nominal Voltage (V) Capacity (Ah)  Dimension (mm) Net Weight Gross Weight Terminal
Length Width Height Total Height kgs kgs
DC2-200G 2 200/10HR 170 106 330 367 13.2 13.4 M8
DC2-300G 2 300/10HR 171 151 330 365 18.7 18.9 M8
DC2-400G 2 400/10HR 211 176 329 367 26.3 26.5 M8
DC2-500G 2 500/10HR 241 172 330 364 31.2 31.4 M8
DC2-600G 2 600/10HR 301 175 331 366 37.9 38.2 M8
DC2-800G 2 800/10HR 410 176 330 365 51.8 52.1 M8
DC2-1000G 2 1000/10HR 475 175 328 365 62.5 62.8 M8
DC2-1200G 2 1200/10HR 472 172 338 355 69 69.3 M8
DC2-1500G 2 1500/10HR 401 351 342 378 97 97.5 M8
DC2-2000G 2 2000/10HR 491 351 343 383 130.5 131 M8
DC2-2500G 2 2500/10HR 712 353 341 382 180.5 181 M8
DC2-3000G 2 3000/10HR 712 353 341 382 190.5 191 M8
NOTE: All Above details shall be changed without prior notice, CSBattery reserves the right to explain & update the lastest information.
SUCCESSFUL CASES

Project name: Energy Storage System

Country: Mongolia

Year: 2018



In 2018, CSBattery supplied Gel VRLA batteries in Mongolia. Our team installed model no DC2-800G(2V 800Ah) of VRLA batteries as backup power for energy storage solution of 176KWH power system.
