High-Temp Deep Cycle Battery

/HTB12-200 12V 200AH High-Temp Deep Cycle Batteries

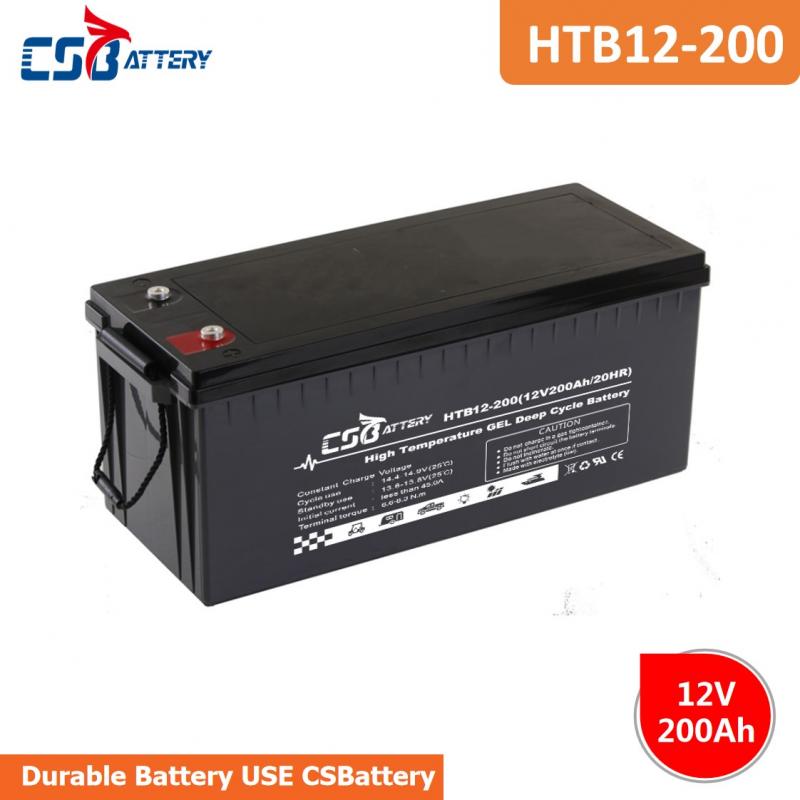

HTB12-200 12V 200AH High-Temp Deep Cycle Batteries

HTB (High Temperature Long Life Deep Cycle GEL) series is pure GEL battery with 15~20 years floating design life.

It is ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the HTB series offers excellent recovery after deep discharge under frequent cyclicdischarge use, and can deliver 1500 cycles at 50% DOD.

Suitable for Solar, CATV, Marine, RV and Deep discharge UPS, Communication and Telecommunication , etc.

  • Item NO.:

    HTB12-200
  • Product Origin:

    China
  • Color:

    Sunny Grey Body, Black Cover
  • Goods stock:

    24
  • Min order:

    24 PCS
  • Product weight:

    5-80 KGS
  • Lead Time:

    25-30 days fast delivery 10days
  • Plate:

    Tincken Flat Plate
  • Nominal Voltage:

    12V 8V 6V 2V
  • Discharge Rate:

    0.2C-0.5C
  • Electrolyte:

    German GEL
  • Welcome:

    OEM Brand, OEM Color...
  • Usage:

    Solar/Wind/Golf Car/UPS
  • Certificates:

    CE/IEC/ISO/UL
  • Warranty:

    3 Years
  • Trade Terms:

    EXW, FOB, CIF
Features
  • Battery cell for 12V 200Ah 12V200Ah 24V200Ah 36V200Ah 48V200Ah
  • Designed floating service life: 15~20years @25°C/77°F
  • Able to operate at -40°C to +60°C
  • Deep Cycle usage: 50% DOD, 1500-1600 Cycles work in high/cold temp. area.
  • 3 years Warranty
  • Adopt Super-C additives lead plates: Deep discharge recovery capability
  • Solar power generation grid, Off Grid energy storage systems, Wind Power Systems,
  • Hybrid energy storage systems,Home energy storage systems, Telecom Station
  • Renewable energy storage, Smart power grids and micro-grids system
  • Distributed energy storage system, UPS and Inverter systems, Emergency lighting system
  • Generator and battery hybrid energy system
  • Electric Powered Vehicles, Golf Cars and Buggies, Tour bus, Sweeper, Floor cleaning machines,
  • Wheel Chairs, Power Tools, Electric Powered Toys, Control System, Medical Equipments,
  • Forklift, Marine, RV, Boat, Pumps, and so on.
  • Normal, 25-30 days for production with injection molding Lead-plate by ourself
  • As a factory we Can Support Urgent project with 10-15days.
  • OEM brand is free charge.



Battery cell for 12V 200Ah 12V 200Ah 24V 200Ah 36V 200Ah 48V 200Ah

China, manufacturers, suppliers, factory, customized, cheap

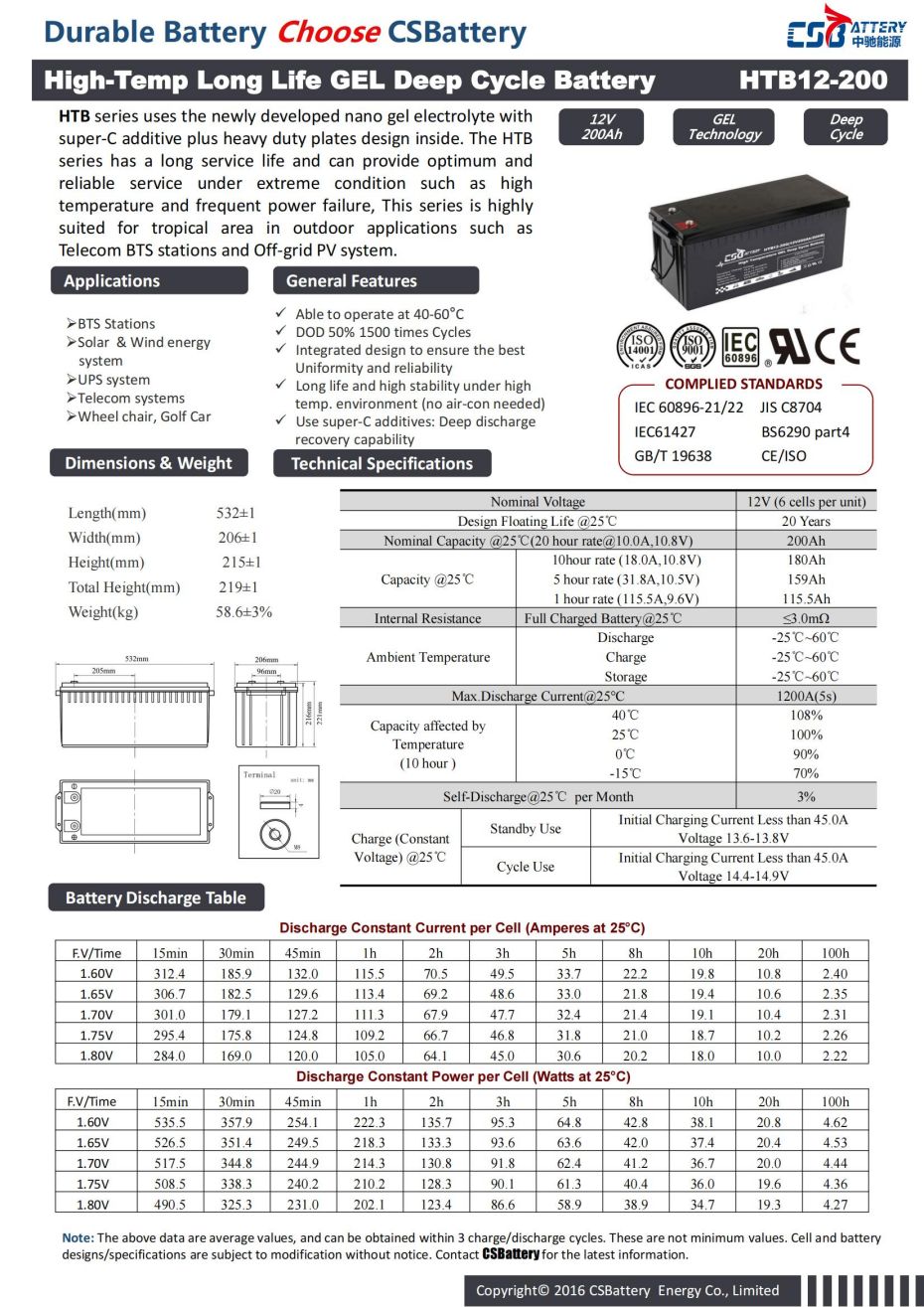

TECHNICAL DATA

Model Nominal Voltage (V) Capacity (Ah)  Dimension (mm) Net Weight Gross Weight Terminal
Length Width Height Total Height kgs kgs
HTB High Temperature Deep Cycle GEL Battery  12V
HTB12-14 12 14 152 99 96 102 3.8 3.9 F1/F2
HTB12-20 12 20 181 77 167 167 6 6.1 T1/L1
HTB12-24 12 24 166 175 126 126 8.3 8.4 M6
HTB12-26 12 26 165 126 174 179 8.4 8.5 M6
HTB12-35 12 35 196 130 155 167 10.5 10.7 M6
HTB12-40 12 40 198 166 174 174 14.2 14.4 M6
HTB12-55 12 55 229 138 208 212 16 16.5 M6
HTB12-70 12 70 350 167 178 178 23.3 23.8 M6
HTB12-75 12 75 260 169 208 227 25 25.5 M6
HTB12-85 12 85 260 169 208 227 26.1 26.6 M6
HTB12-90 12 90 307 169 211 216 28.2 28.7 M6
HTB12-100 12 100 307 169 211 216 30.2 30.7 M6
HTB12-110 12 110 328 172 218 222 33.5 34 M8
HTB12-120 12 120 407 173 210 233 39.2 39.7 M8
HTB12-135 12 135 344 172 280 285 40.8 41.3 M8
HTB12-150 12 150 484 171 241 241 45.5 46 M8
HTB12-180 12 180 532 206 216 222 56 56.5 M8
HTB12-200 12 200 532 206 216 222 58.6 59.1 M8
HTB12-230 12 230 522 240 219 225 65 65.5 M8
HTB12-250 12 250 520 269 203 207 71 71.5 M8
HTB12-300 12 300 520 269 220 226 77 77.5 M8
HTB High Temperature Deep Cycle GEL Battery  6V
HTB6-200 6 200 306 168 220 222 30 30.1 M8
HTB6-210 6 210 260 180 247 249 29.5 29.6 M8
HTB6-220 6 220 306 168 220 222 31.5 31.6 M8
HTB6-225 6 225 243 187 275 275 30.5 30.6 M8
HTB6-250 6 250 260 180 265 272 34.5 34.6 M8
HTB6-310 6 310 295 178 346 366 46 46.2 M8
HTB6-330 6 330 295 178 354 360 46.6 46.8 M8
HTB6-380 6 380 295 178 404 410 55.3 55.8 M8
HTB6-420 6 420 295 178 404 410 56.8 57.3 M8
HTB8-170 8 170 260 182 266 271 34.3 34.8 M8
HTB8-200 8 170 260 182 295 300 38.3 38.8 M8
NOTE: All Above details shall be changed without prior notice, CSBattery reserves the right to explain & update the lastest information.
SUCCESSFUL CASES

Project name: Energy Storage System

Country: Saudi Arabia

Year: 2016



In 2017, CSBattery supplied Solar gel range VRLA batteries in Saudi Arabia. Our team installed model no HTB12-110(12V 100Ah) of Solar range GEL batteries as backup power for energy storage solution of 21KW off-grid solar system.
