HR series 12V 6V as high end ups battery uses the Heavy duty lead calcium plates provide an extra margin of performance and life in both cyclic and float applications and give unequaled recovery from deep discharge.
Suitable for UPS/EPS, data centers where high current loads are required
Item NO.:

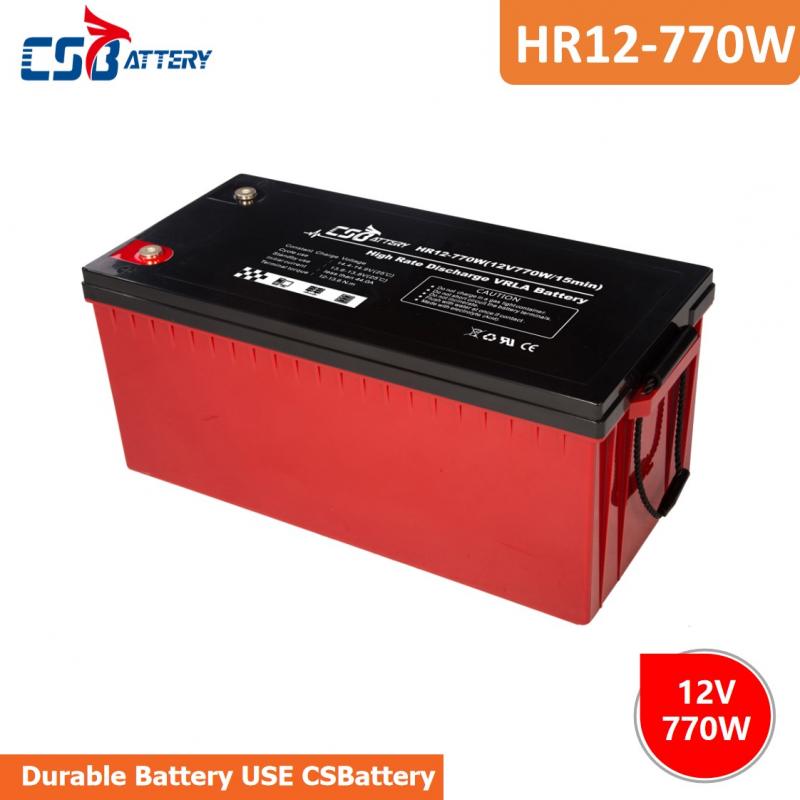

HR12-770WProduct Origin:
ChinaColor:
Red Body, Block CoverGoods stock:
180Min order:
12 PCSProduct weight:
0.5-60 KGSLead Time:
40 daysPlate:
thin Flat PlateNominal Voltage:
12V 6VDischarge Rate:
0.2-1.0CElectrolyte:
ACIDWelcome:
OEM Brand, OEM Color...Usage:
UPSCertificates:
CE/IOS/ULWarranty:
2 YearsTrade Terms:
EXW, FOB, CIFBattery cell for 6V 770W 12V 770W 24V 770W 48V 770W
55W 85W 115W 145W 170W 300W 370W 420W 470W 520W 540W 680W 770W 800W 900W
China, manufacturers, suppliers, factory, customized, cheap, high rate
Model | Nominal Voltage (V) | Rated Capability (Ah) ,10HR | Dimension (mm) | Net Weight | Gross Weight | Terminal | |||
Length | Width | Height | Total Height | kgs | kgs | ||||
HR6-720W | 6 | 190 | 260 | 180 | 247 | 252 | 30.8 | 30.9 | M8 |
HR12-35W | 12 | 8 | 151 | 65 | 95 | 101 | 2.55 | 2.6 | F2 |
HR12-55W | 12 | 12 | 151 | 99 | 96 | 102 | 3.8 | 4 | F2 |
HR12-85W | 12 | 20 | 181 | 77 | 167 | 167 | 6.5 | 6.6 | M6 |
HR12-115W | 12 | 28 | 165 | 126 | 174 | 174 | 8.7 | 8.8 | M6 |
HR12-145W | 12 | 34 | 196 | 130 | 155 | 167 | 11 | 11.1 | M6 |
HR12-170W | 12 | 42 | 198 | 166 | 174 | 174 | 13.8 | 14 | M6 |
HR12-300W | 12 | 80 | 260 | 169 | 211 | 215 | 25 | 25.2 | M6 |
HR12-370W | 12 | 95 | 307 | 169 | 211 | 216 | 31 | 31.5 | M6 |
HR12-420W | 12 | 110 | 331 | 176 | 214 | 220 | 33.3 | 33.8 | M8 |
HR12-470W | 12 | 135 | 407 | 174 | 210 | 233 | 39 | 39.5 | M8 |
HR12-520W | 12 | 150 | 484 | 171 | 241 | 241 | 47 | 47.5 | M8 |
HR12-540W | 12 | 155 | 328 | 182 | 267 | 272 | 46 | 46.5 | M8 |
HR12-680W | 12 | 170 | 532 | 206 | 216 | 222 | 58.5 | 59 | M8 |
HR12-770W | 12 | 220 | 522 | 240 | 219 | 225 | 67 | 67.5 | M8 |
HR12-800W | 12 | 230 | 520 | 269 | 203 | 209 | 70 | 70.5 | M8 |
HR12-900W | 12 | 260 | 520 | 269 | 220 | 226 | 79 | 79.5 | M8 |
NOTE: All Above details shall be changed without prior notice, CSBattery reserves the right to explain & update the lastest information. |
Project name: Back up PowerSystem
Country: Iraq
Year: 2021
In 2021, CSBattery supplied High Rate discharge batteries in Saudi Arabia. Our team installed model no HR12-420W(12V 420W) of High Rate VRLA batteries as backup power for energy storage solution of 600KVA back up system.
