Fast-C Lead-Carbon Battery

/HDC12-60 12V 60Ah Fast-C Lead Carbon Battery

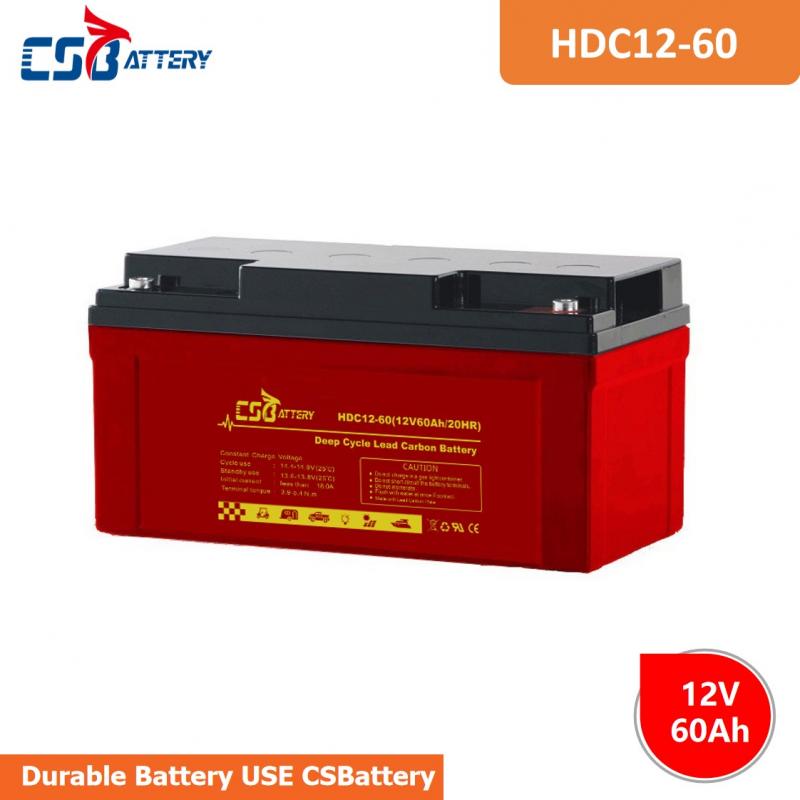

HDC12-60 12V 60Ah Fast-C Lead Carbon Battery

HDC series lead carbon batteries use functional activated carbon and graphene as carbon materials, which are added to the negative plate of the battery to make lead carbon batteries have the advantages of both lead-acid batteries and super capacitors. It not only improves the ability of rapid charge and discharge, but also greatly prolongs the battery life. It is more suitable for the application of PSOC.

  • Item NO.:

    HDC12-60 12V 60Ah F
  • Product Origin:

    China
  • Color:

    Red Body, Black Cover
  • Goods stock:

    480
  • Min order:

    48
  • Product weight:

    5-80 KGS
  • Lead Time:

    30-35 days, Fast Delivery 25days
  • Plate:

    Lead Carbon Flat Plate
  • Nominal Voltage:

    12V 6V
  • Discharge Rate:

    0.1-0.5C
  • Electrolyte:

    ACID
  • Welcome:

    OEM Brand, Color with Free
  • Usage:

    Solar/Wind/Telecom
  • Certificates:

    CE/IEC/ISO
  • Warranty:

    3-5Years
  • Trade Terms:

    EXW, FOB, CIF
Features
  • 12V60Ah Fast-C Lead Carbon Battery cell for 24V60Ah, 36V60Ah, 48V60Ah
  • Designed floating service life: ≥ 20Years
  • Able to operate at -40°C to 60°C
  • 50% DOD Cycle use 25℃: Over 3000 times /80% DOD Cycle use 25℃: over 2000 times
  • Three years warranty at 35°C-40°C average
  • Normal, 30-35 days for production with injection molding Lead-Carbon-plate by ourself
  • As a factory we Can Support Urgent project with 25-30days.
  • OEM brand is Free service.
  • Solar power generation grid, Off Grid energy storage systems, Wind Power Systems
  • Battery cell for 24V 60Ah, 36V 60Ah, 48V 60Ah
TECHNICAL DATA

Model Nominal Voltage (V) Capacity (Ah)  Dimension (mm) Net Weight Gross Weight Terminal Arrange
Length Width Height Total Height kgs kgs
LEAD CARBON SEALED FREE MAINTENANCE BATTERY
HDC6-200 6 200 306 168 220 226 31 31.5 T5 F
HDC6-205 6 205 260 180 246 252 30 30.5 T5 F
HDC6-225 6 225 243 187 275 275 32.5 33 T5 F
HDC6-230 6 230 260 180 265 272 34.2 34.7 T5 F
HDC6-280 6 280 295 178 346 350 45.8 46.3 T5 F
HDC6-300 6 300 295 178 346 350 46.5 47 T5 F
HDC6-340 6 340 295 178 404 408 55 55.5 T5 F
HDC6-380 6 380 295 178 404 408 57.2 57.7 T5 F
HDC12-20 12 20 166 175 126 126 8.35 8.85 T2 B
HDC12-24 12 24 165 126 174 174 8.6 9.1 T2 B
HDC12-30 12 30 196 130 155 167 10.2 10.7 T3 A
HDC12-35 12 35 198 166 174 174 14 14.5 T2 B
HDC12-50 12 50 229 138 208 212 17.7 18.2 T3 A
HDC12-60 12 60 350 167 178 178 23 23.5 T3 B
HDC12-75 12 75 260 169 211 215 26 26.5 T3 A
HDC12-90 12 90 307 169 211 215 30 30.5 T3 A
HDC12-100 12 100 331 176 215 219 33 33.5 T4 A
HDC12-110 12 110 407 174 208 233 39 39.5 T5 A
HDC12-120 12 120 341 173 283 287 40.5 41 T5 A
HDC12-135 12 135 484 171 241 241 45.5 46 T4 A
HDC12-180 12 180 532 206 215 219 58.5 59 T4 C
HDC12-200 12 200 522 240 219 223 64.8 65.3 T5 C
HDC12-220 12 220 520 268 203 207 70.8 71.3 T5 C
HDC12-250 12 250 520 268 220 224 77.5 78 T5 C
NOTE: All Above details shall be changed without prior notice, CSBattery reserves the right to explain & update the lastest information.
SUCCESSFUL CASES

Project name: Energy Storage System

Country: UK

Year: 2020



In 2020, CSBattery supplied Solar gel range VRLA batteries in UK. Our team installed model no HDC12-200(12V 200Ah) of Solar range Lead Carbon Batteries as Solar power for energy storage solution of 8KW off-grid solar system.
