OPzS Tubular Flooded Battery

/7OPzS2-490 2V 490AH Tubular Flooded OPzS Battery

7OPzS2-490 2V 490AH Tubular Flooded OPzS Battery

CSBattery OPzS series is flooded Lead Acid battery that adopts Tubular Plate technology to offer high reliability and performance.  The Battery is designed and manufactured according to standards and with DIN40736-2/IEC60896-11 positive spine and patent formula of die-casting active material. OPzS series exceeds standard values with more DIN40736-2/IEC60896-11 than 20 years floating design even more suitable for life at 25℃ and is cyclic use(PV/solar,traction etc) under extreme operating conditions.

Our OPzS factory Produce tubular plate by ourself . For urgent project we support 20-25days fast delivery time.

  • Item NO.:

    7OPzS2-490
  • Product Origin:

    China
  • Color:

    Grey Cover, Transparency Body
  • Goods stock:

    188
  • Min order:

    24 pcs
  • Product weight:

    10-225kgs
  • Lead Time:

    35-40, Fast Delivery 25days
  • Plate:

    Tubular Plate
  • Nominal Voltage:

    2V
  • Discharge Rate:

    0.2-1.0C
  • Electrolyte:

    Acid
  • Welcome:

    OEM Brand with Free
  • Usage:

    off Grid Solar/Wind Power System
  • Certificates:

    CE/IEC/ISO
  • Warranty:

    3-5 Years
  • Trade Terms:

    EXW, FOB, CIF
Features
  • Battery cell for 2V 490Ah 12V490Ah 24V490Ah 36V490Ah 48V490Ah
  • Designed floating service life: >20years @25°C/77°F
  • Able to operate at -40°C to +60°C
  • Deep Cycle usage: 80% DOD, >2000 Cycles
  • 3 years Warranty
  • Tubular positive plate with prolonged cycle life
  • Lead Calcium die cast grid with improved corrosion resistance capability
  • Low self-discharge rate and long shelf life
  • Excellent deep discharge recovery capability
  • Off Grid Solar, Off Grid Wind, Telecom,BTS, Date Center, Medical Equipments,
  • UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System
  • Normal, 35-40 days for production with injection molding Lead-plate by ourself
  • As a OPzS factory we Can Support Urgent project with 20-30days.
  • OEM brand is free charge.

Battery cell for  2V 490Ah 12V 490Ah 24V 490Ah 36V 490Ah 48V 490Ah

China, manufacturers, suppliers, factory, customized, cheap, Tubular, Lead Acid

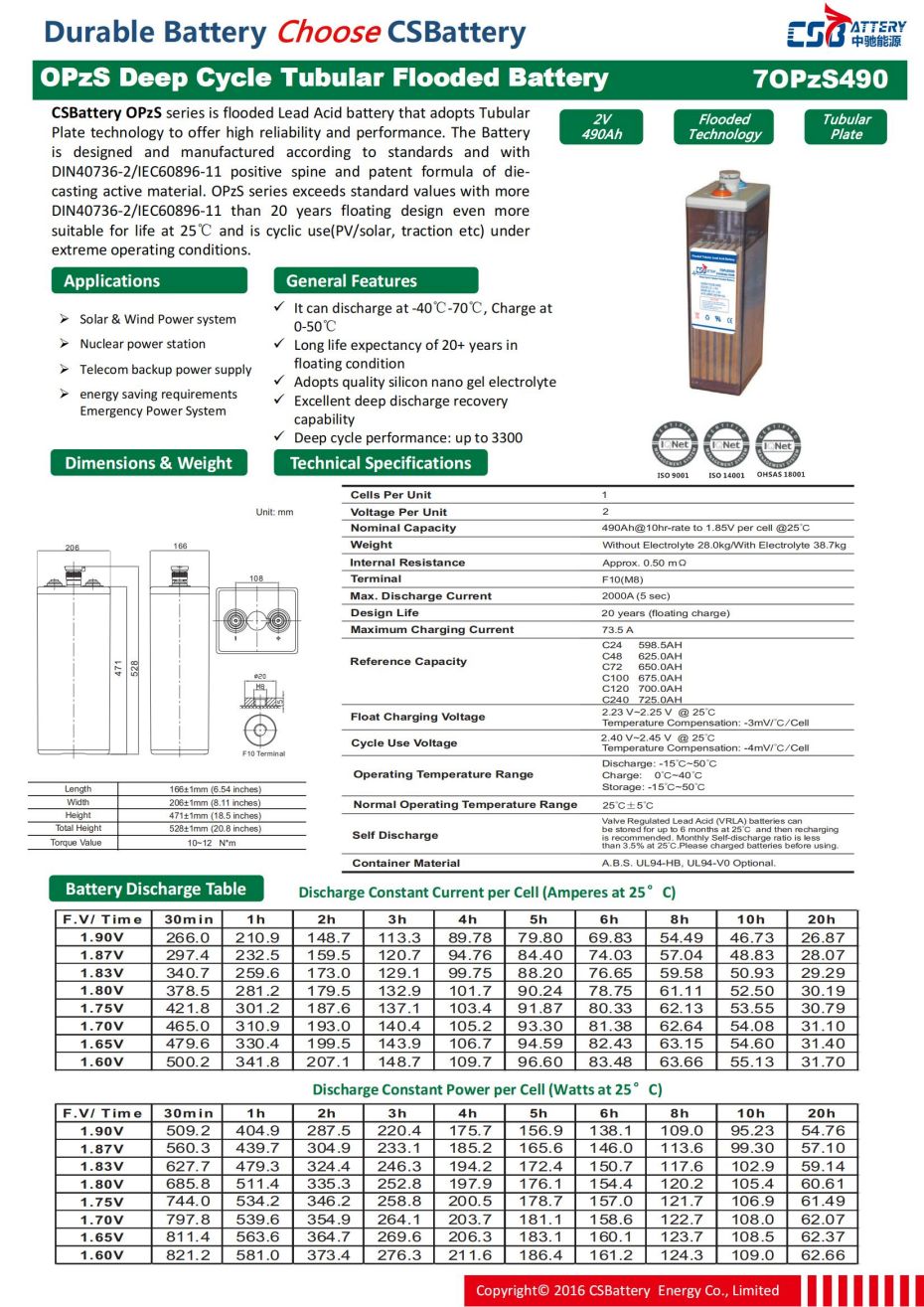

TECHNICAL DATA

Model Nominal Voltage (V) Capacity (Ah)  Dimension (mm) Net Weight Gross Weight Terminal
Length Width Height Total Height kgs kgs
4OPzS200 2 200 103 206 355 410 12.8 17.5 M8
5OPzS250 2 250 124 206 355 410 15.1 20.5 M8
6OPzS300 2 300 145 206 355 410 17.5 24 M8
5OPzS350 2 350 124 206 471 526 19.8 27 M8
6OPzS420 2 420 145 206 471 526 23 32 M8
7OPzS490 2 490 166 206 471 526 26.2 38 M8
6OPzS600 2 600 145 206 646 701 32.6 47 M8
8OPzS800 2 800 191 210 646 701 45 64 M8
10OPzS1000 2 1000 233 210 646 701 54 78 M8
12OPzS1200 2 1200 275 210 646 701 63.6 92 M8
12OPzS1500 2 1500 275 210 773 828 81.7 112 M8
16OPzS2000 2 2000 399 210 773 828 119.5 150 M8
24OPzS2500 2 2500 487 212 771 826 152 204 M8
24OPzS3000 2 3000 576 212 772 806 170 230 M8
NOTE: All Above details shall be changed without prior notice, CSBattery reserves the right to explain & update the lastest information.
SUCCESSFUL CASES

Project name: Energy Storage System

Country: Iraq

Year: 2019



In 2019, CSBattery supplied Solar gel range VRLA batteries in Iraq. Our team installed model no OPzS420(2V 420Ah) of Solar range Tubular Gel batteries as Building Main power for energy storage solution of 5KW off-grid solar system.
